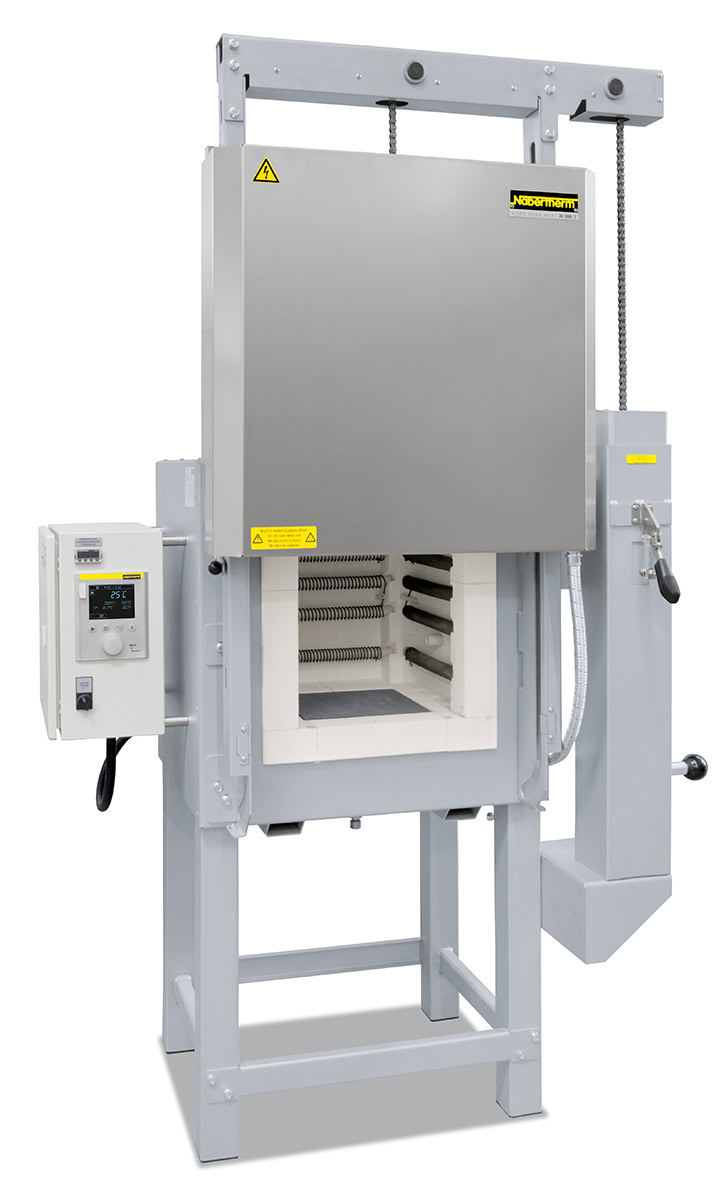

Nabertherm Chamber Furnace LH 30/12

HARGA HUBUNGI KAMI

The chamber furnaces LH 15/12 – LF 120/14 have been trusted for many years as professional chamber furnaces for the laboratory. These furnaces are available with either a robust insulation of light refractory bricks (LH models) or with a combination insulation of refractory bricks in the corners and low heat storage, quickly cooling fiber material (LF models). With a wide variety of optional equipment, these chamber furnaces can be optimally adapted to your processes.

Tmax 1200 °C, 1300 °C, or 1400 °C
Dual shell housing with rear ventilation, provides for low shell temperatures
High furnace chamber with five-sided heating for very good temperature uniformity
Heating elements on support tubes ensure free heat radiation and a long service life
Controller mounted on furnace door and removable for comfortable operation
Protection of bottom heating and flat stacking surface provided by embedded SiC plate in the floor
LH models: multi-layered insulation of light refractory bricks and special backup insulation
LF models: high-quality fiber insulation with corner bricks for shorter heating and cooling times. Only fiber materials are used which are not classified as carcinogenic according to TRGS 905, class 1 or 2.
Door with brick-on-brick seal, hand fitted
Short heating times due to high installed power
Self-supporting arch for high stability and greatest possible protection against dust
Quick lock on door
Motor driven exhaust air flap
Freely adjustable air inlet integrated in furnace floor
Base included
Defined application within the constraints of the operating instructions
NTLog Basic for Nabertherm controller: recording of process data with USB-flash drive

Bila barang ternyata lebih ringan dari ketentuan produk diatas, maka uang akan dikembalikan.

SKU: GS 264 Kategori: LABORATORIUM UMUM Tag: JUAL ALAT KESEHATAN, JUAL Nabertherm Chamber Furnace LH 30/12, JUAL OBAT, Nabertherm, Nabertherm Chamber Furnace LH 30/12

Tmax 1200 °C, 1300 °C, or 1400 °C
Dual shell housing with rear ventilation, provides for low shell temperatures
High furnace chamber with five-sided heating for very good temperature uniformity
Heating elements on support tubes ensure free heat radiation and a long service life
Controller mounted on furnace door and removable for comfortable operation
Protection of bottom heating and flat stacking surface provided by embedded SiC plate in the floor
LH models: multi-layered insulation of light refractory bricks and special backup insulation
LF models: high-quality fiber insulation with corner bricks for shorter heating and cooling times. Only fiber materials are used which are not classified as carcinogenic according to TRGS 905, class 1 or 2.
Door with brick-on-brick seal, hand fitted
Short heating times due to high installed power
Self-supporting arch for high stability and greatest possible protection against dust
Quick lock on door
Motor driven exhaust air flap
Freely adjustable air inlet integrated in furnace floor
Base included
Defined application within the constraints of the operating instructions
NTLog Basic for Nabertherm controller: recording of process data with USB-flash drive

Additional equipment

Parallel swinging door, pivots away from operator, for opening when hot
Lift door with electro-mechanic linear drive
Separate wall-mounting or floor standing cabinet for switchgear
Cooling fan for shorter cycle times
Protective gas connection to purge with non-flammable protective or reaction gases
Manual or automatic gas supply system
Scale to measure weight reduction during annealing
Process control and documentation via VCD software package or Nabertherm Control Center (NCC) for monitoring, documentation and control

SPECIFICATION :

Tmax	1200 °C
Inner dimensions in mm ( w x d x h)	320 x 320 x 320
Volume in l	30
Outer dimensions in mm ( w x d x h )	710 x 930 x 1290
Connected load kW	7.0
Electrical connection*	3-phase
Weight in kg	200
