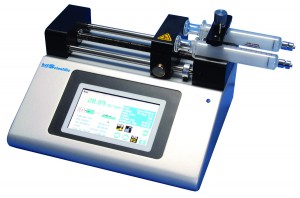

788101 Legato 101 Dual Syringe Infue Only 230V, 50Hz Uk Plug

Name: 788101 Legato 101 Dual Syringe Infue Only 230V, 50Hz Uk Plug | Syaf Unica Indonesia
SKU: GS 219

HARGA HUBUNGI KAMI

Infuse only dual syringe pump. Accommodates syringes 0.5 µl to 10 ml. User definable flow rates with selectable target volume or time values to control the total infusion volume.

Features

Holds one or two syringes from 0.5 µl to 10 ml
High resolution color touch screen
Unparalled ease of use
Touch pad “lock” feature
LED light on front panel
Full metal chassis
Built in syringe table
Up to 30 lbs linear force
Advanced microstepping techniques
Built in RS485 interface
USB port
I/O & TTL interface
Continuous mode of operation
Spill dam

Bila barang ternyata lebih ringan dari ketentuan produk diatas, maka uang akan dikembalikan.

SKU: GS 219 Kategori: LABORATORIUM UMUM Tag: 50Hz Uk Plug, 788101 Legato 101, 788101 Legato 101 Dual Syringe Infue Only 230V, JUAL ALAT KESEHATAN, JUAL OBAT

Infuse only dual syringe pump. Accommodates syringes 0.5 µl to 10 ml. User definable flow rates with selectable target volume or time values to control the total infusion volume.

Features

Holds one or two syringes from 0.5 µl to 10 ml
High resolution color touch screen
Unparalled ease of use
Touch pad “lock” feature
LED light on front panel
Full metal chassis
Built in syringe table
Up to 30 lbs linear force
Advanced microstepping techniques
Built in RS485 interface
USB port
I/O & TTL interface
Continuous mode of operation
Spill dam

Specifications

Accuracy	±0.5%
Reproducibility	±0.05%
Syringes (Min/Max)	0.5 µl to 10 ml
Flow Rate	Minimum (0.5 µl syringe): 1.28 pl/min Maximum (10ml syringe): 25.99 ml/min
Display	4.3 WQVGA TFT Color Display with Touchpad
Non-Volatile Memory	Stores all Settings
Connectors	RS485 – IEEE-1394 6 pos USB – Type B I/O & TTL – 15 pin D-Sub Connector
Linear Force (Max)	13.6 kg (30 lbs) @ 100% Force Selection
Drive Motor	0.9 Stepper Motor
Motor Drive Control	Microprocessor with 1/16 microstepping
Number of Microsteps per one rev.of Lead Screw	15,360
Step Revolution	0.069 µm/step
Step Rate – Minimum	27.5 sec/µstep
Step Rate – Maximum	26 µsec/µstep
Pusher Travel Rate – Minimum	0.15 µm/min
Pusher Travel Rate – Maximum	159 mm/min
Power	100-240 VAC: 50/60 Hz, 50 W, 0.5 A fuse
Dimensions	22.6 x 19.05 x 15 cm (9 x 7.5 x 5 in)
Weight	2.66 kg (5.9 lb)
Operating Temperature	4 degree C to 40 degree C (40 degree F to 104 degree F)
Storage Temperature	-10 degree C to 70 degree C (14 degree F to 158 degree F)
Humidity	20% to 80% RH non condensing
Mode of Operation	Continuous
Classification	Class 1
Pollution Degree	1
Installation Category	II
Regulatory Certification	CE, UL, CSA, CB Scheme, EU RoHS
