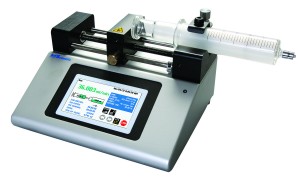

789100 KDS100 Infusion Pump 220 Vac/50Hz

Name: 789100 KDS100 Infusion Pump 220 Vac/50Hz | Syaf Unica Indonesia
SKU: GS 218

HARGA HUBUNGI KAMI

nfuse only single syringe pump. Accommodates syringes from 0.5 µl to 60 ml. User definable flow rates with selectable target volume or time values to control the total infusion volume.

Features

Bila barang ternyata lebih ringan dari ketentuan produk diatas, maka uang akan dikembalikan.

SKU: GS 218 Kategori: LABORATORIUM UMUM Tag: 789100 KDS100, 789100 KDS100 Infusion Pump 220 Vac/50Hz, 789100 KDS100 Infusion Pump 220 Vac/50Hz MURAH, JUAL ALAT KESEHATAN, JUAL OBAT

nfuse only single syringe pump. Accommodates syringes from 0.5 µl to 60 ml. User definable flow rates with selectable target volume or time values to control the total infusion volume.

Features

Specification

Accuracy	±0.5%
Reproducibility	±0.05%
Syringes (Min/Max)	0.5 µl to 60ml
Flow Rate	Minimum (0.5 µl syringe): 1.28 pl/min Maximum (10ml syringe): 25.99 ml/min Maximum (60ml syringe): 88.28 ml/min
Display	4.3 WQVGA TFT Color Display with Touchpad
Non-Volatile Memory	Stores all Settings
Connectors	RS485 – IEEE-1394 6 pos USB – Type B I/O & TTL – 15 pin D-Sub Connector
Linear Force (Max)	13.6 kg (30 lb) @ 100% Force Selection
Drive Motor	0.9 Stepper Motor
Motor Drive Control	Microprocessor with 1/16 microstepping
Number of Microsteps per one rev.of Lead Screw	15,360
Step Revolution	0.069 µm/step
Step Rate – Minimum	27.5 sec/µstep
Step Rate – Maximum	26 µsec/µstep
Pusher Travel Rate – Minimum	0.15 µm/min
Pusher Travel Rate – Maximum	159 mm/min
Power	100-240 VAC: 50/60 Hz, 50 W, 0.5 A fuse
Dimensions	22.6 x 19.05 x 15 cm (9 x 7.5 x 5 in)
Weight	2.66 kg (5.9 lb)
Operating Temperature	4 degree C to 40 degree C (40 degree F to 104 degree F)
Storage Temperature	-10 degree C to 70 degree C (14 degree F to 158 degree F)
Humidity	20% to 80% RH non condensing
Mode of Operation	Continuous
Classification	Class 1
Pollution Degree	1
Installation Category	II
Regulatory Certification	CE, UL, CSA, CB Scheme, EU RoHS
