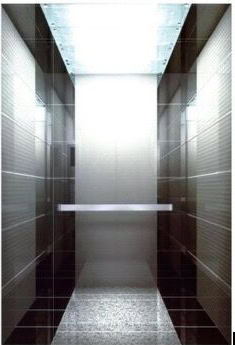

Office Building Elevators

HARGA TERBAIK HUBUNGI KAMI

Specifications
Product	FUJI-TKJ
Applecation	Office Buliding
Speed	4m/s
Max.load	2000kg
Max.no.persons	up to 26

Bila barang ternyata lebih ringan dari ketentuan produk diatas, maka uang akan dikembalikan.

SKU: ELEVATORS 5 Kategori: ELEVATORS Tag: JUAL ALAT KESEHATAN, JUAL OBAT, JUAL PEMASANGAN Office Building Elevators, Office Building Elevators, PAKET HEMAT Office Building Elevators

Deskripsi
Ulasan (0)

Travel function

Car arrival gong——Arrival gong in the car top announces that the passengers arrives
VVVF drive——Motor rotating speed can be precisely adjusted to get smooth speed curve in elevator start,travel and stop and gain the sound comfort.
VVVF door operator——Motor rotating speed can be precisely adjusted to get the more gentle and sensitive door machine start/stop.
Independent running——The elevator can not respond to outer calling,but only respond to the command inside the car through the action switch.
Automatic pass without stop——When the car is crowded with the passengers or the load is close to preset value,the car will automatically pass the calling landing in order to keep maximum travel efficiency.
Automatically adjust door opening time——Door-open time can be automatically adjusted according to the difference between landing calling or car calling.
Reopen with hall call——In the door shutting process,press reopen with hall call button can restart the door.
Express door closing——When the elevator stops and opens the door,press door-shut button,the door will be closed immediately.
Car stops and door open ——The elevator decelerates and levels,the door only opens after the elevator comes to a complete stop.
Car arrival gong——Arrival gong in the car top announces that the passengers arrive.
Direct parking——It completely accords with distance principle with no crawing in the leveling. It greatly enhances the travel efficiency.

Safety function

Anti-stall timer protection——The elevator stops operation due to slippery
Photocell protection——In the door open and shut period. infrared light that covers the whole door height is used to probe the door protection device of both
Designated stop——If the elevator can not open the door in the destination floor out of some reason,the elevator will close the door and travel to the next designated floor.
Overload holding stop——When the car is overload,the buzzer rings and stops the elevator in the same floor.
Anti-stall timer protection——The elevator stops operation due to slippery traction wire rope.
Start protection control——If the elevator does not leave door zone with in the designated time after it gets started,it will stop the operation.
Inspection operation——When the elevator enters into inspection operation,the car travels at inching running.
Fault self-diagnosis——The controller can record 62 latest troubles so as to quickly remove the trouble and restore the elevator operation.
Repeated door closing——If the elevator can not close the door due to certain obstacle or interference,the elevator will reopen or re-shut the door until sundries are eliminated.
Up/down over-run and final limit protection——The device can effectively prevent from the elevator’s surging to the top or knocking the bottom when it is out of control.It results in more safe and reliable elevator travel.
Down over-speed protection device——When the elevator downs 1.3 times higher than the rated speed,this device will automatically cut off control mains,stop the motor running.safety tongs act to force the elevator stop in order to ensure the safety.
Upward over-speed protection device——When the elevator up speed is 1.3 times higher than rated speed,the device will automatically decelerate or brake the elevator.

Man-machine neinterface

Floor and direction indicator inside car——The car shows the elevator floor locat
Micro-touch button for car call and hall call——Novel micro-touch button is used for operation panel command button in the car and landing calling button.
Floor and direction indicator inside car——The car shows the elevator floor location and current travel direction.
Floor and direction indicator in hall——The landing shows the elevator floor locating and current travel direction.

Emergency function

Emergency car lighting——Emergency car lighting automatically activated once
Inspection operation——Automatically Move To The Nearest Leveling In A Slow Speed inching running.
Five way intercom——Commununication amid car,car top,elevator machine room,well pit and rescue duty room through walkie-talkie.
Bell——In emergency conditions.if bell button above car operation panel is continuously pressed.electric bell rings on top of the car.
Fire emergency return——If you start key switch in main landing or monitor screen,all the callings will be cancelled.The elevator directly and immediately drives to the designated rescue landing and automatically opens the door.

Energy-saving function

Car ventilation, light automatic shut off——If there is no calling or command
Car ventilation, light automatic shut off——If there is no calling or command signal within the stipulated time,the car fan and lighting will be automatically closed in order to save the energy.
Remote shut-off——The elevator can be called to main landing (after finishing the service) through the key switch and automatically exists the service.

Energy-saving function

Car ventilation, light automatic shut off——If there is no calling or command
Car ventilation, light automatic shut off——If there is no calling or command signal within the stipulated time,the car fan and lighting will be automatically closed in order to save the energy.
Remote shut-off——The elevator can be called to main landing (after finishing the service) through the key switch and automatically exists the service.

Optional Function

Emergency function

Uninterrupted power supply(OPS)——In normal power failure,the chargeable
Uninterrupted power supply(OPS)——In normal power failure,the chargeable battery supplies the elevator power.The elevator drives to the nearest landing.

Travel function

Anti-nuisance——In the light elevator load,when three more commands appear
Anti-nuisance——In the light elevator load,when three more commands appear,in order to avoid the unnecessary parking,all the registered callings in the car will be cancelled.
Open the door in advance——When the elevator decelerates and enters into door open zone,it automatically opens the door to enhance the travel efficiency.
Command register cancel——If you press the wrong floor command button in the car,twice continuous pressing of the same button can cancel the registered command.
Duplex control——Two sets of same model elevators can unanimously respond the calling signal through the computer dispatch. In this way.it reduces the passengers’ waiting time to the greatest extent and enhances the travel efficiency as well.

TMan-machine neinterface

Voice system——When the elevator normally arrives,voice
Voice system——When the elevator normally arrives,voice announcer informs the passengers about the relevant information.
Car assistant operation box ——It is used in the large loading weight lifts or the elevators with crowded passengers so that more and more passengers can use the car.
Operation box for the handicapped——It is convenient for the wheelchair passengers and those who have vision problems.
Intelligent calling service——The car command or hoist-way calling can be locked or connected through special Intelligent Input.

Monitor function

Camera function in the car ——The camera is installed in the car to monitor
Remote monitor——The elevator long-distance monitor and control can be fulfilled through modem and telephone,It is convenient for the factories and service units to timely know the travel conditions of every elevator and promptly take the corresponding measures.
Camera function in the car ——The camera is installed in the car to monitor the car conditions.
