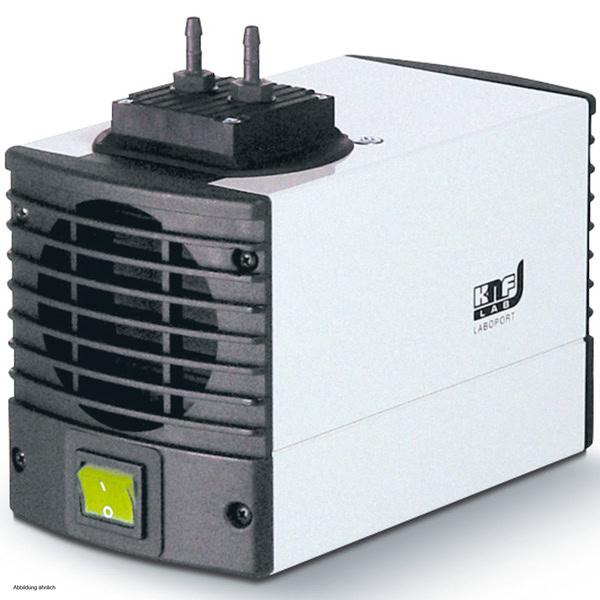

Series N 86 diaphragm pumps are single-head, dry-running devices used in a wide range of laboratory applications. They transfer, compress and pump down without contamination. The heart of these very compact pumps is a KNF structured diaphragm. This patented diaphragm was stress-optimized using the Finite Elements method. As a result, we were able to make the pumps smaller while increasing the service life of the diaphragm

Features

• 100% oil-free transfer
• Pure transferring Evacuation and compression of gases
• Version for slightly aggressive or corrosive gases and vapours
• Maintenance-free
• Environmentally friendly
• High level of gas tightness

Specifications

• Delivery (l/min)1)  : 6
• Ultimate vacuum (mbar abs.) : 100
• Operating Pressure (bar g)  :2.4
• Connectors for tube (mm): ID 4
• Permissible gas and ambient temperature: +5..+40°C
• Mains : 230V/50Hz
• Motor Protection: IP 20
• Power P1 :60W
• Operating Current: 0.6A
• Weight: 1.9KG
