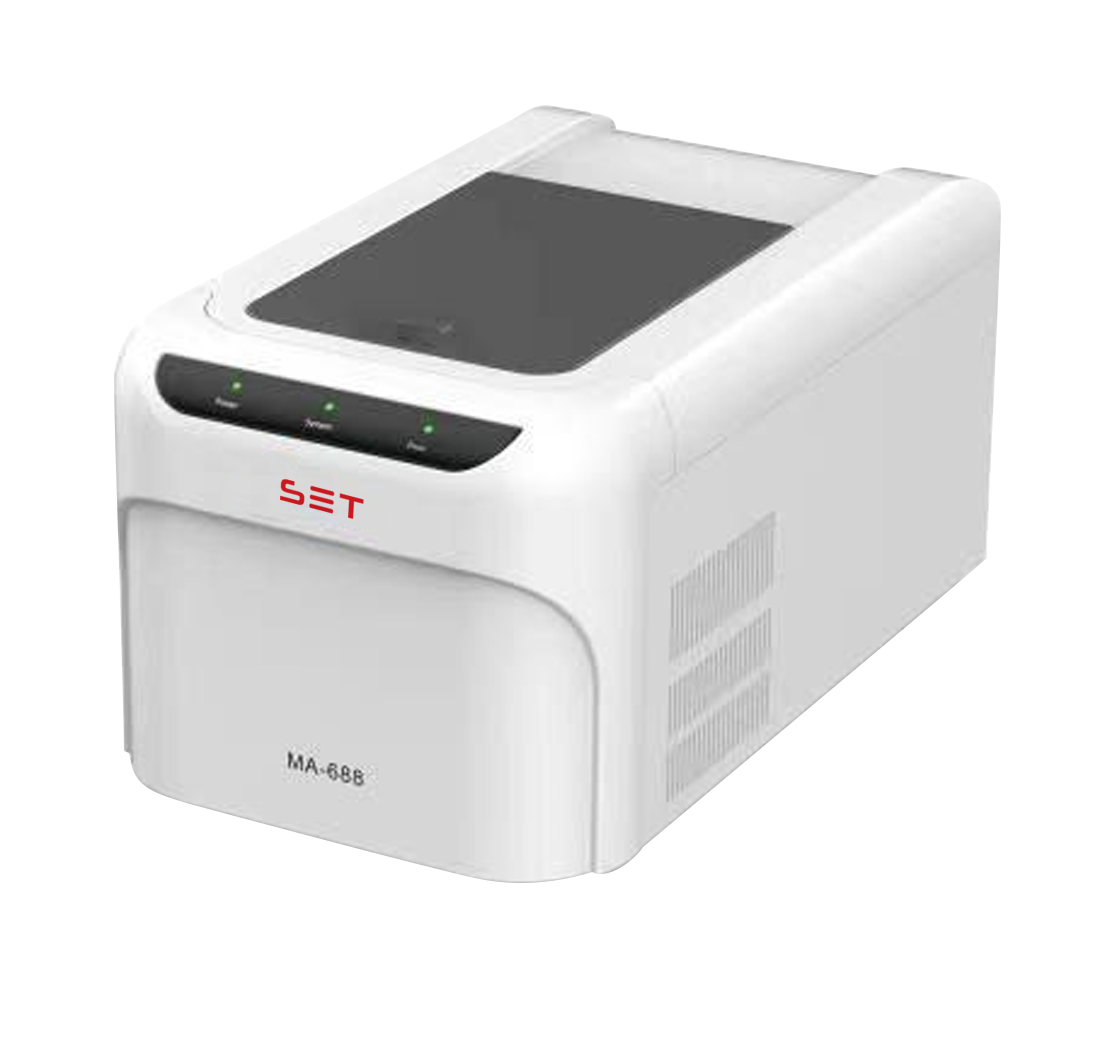

MA-688 MA-SMART SERIES RAPID qPCR System PCR MACHINE DETECTOR

Name: MA-688 MA-SMART SERIES RAPID qPCR System PCR MACHINE DETECTOR | Syaf Unica Indonesia
SKU: PTB8

Introduction

MA-688 Real-Time Quantitative Thermal Cycler adopts maintance-free LED as the excitation light source, which is operated by external computer, with high efficiency and convenience, and can be widely used in basic mecical research, pathogen detection, molecular cloning, genetic screening, gene expression, gene typing and transgenic detection, food safety testing and epidemic monitoring and other fields.

MA-688 is an economical real-time fluorescence quantitative PCR instrument with full open design tailored to qPCR begimers and sman laboratories based on MA-6000 seriestecmical platfonn.

Compact body, 48x02ml international standard sample arrangement standard 3/4 color fluorescence detection channel, MA-Smart reduce the time cost and economic cost for your experiments, help you to open the era of fluorescence quantitative PCR experiment in advance.

SKU: PTB8 Kategori: BIOSET, in vitro diagnostics Tag: BIOSET, Jual alat kedokteran, JUAL ALAT KESEHATAN, jual alat laboratorium, jual alat rumah sakit, JUAL ALKES, JUAL MA-688 MA-SMART SERIES RAPID qPCR System PCR MACHINE DETECTOR, JUAL OBAT, MA-688 MA-SMART SERIES RAPID qPCR System PCR MACHINE DETECTOR, MA-688 MA-SMART SERIES RAPID qPCR System PCR MACHINE DETECTOR MURAH, peralatan laboratorium, peralatan rumah sakit, toko alat kesehatan, toko alkes, toko kesehatan

Introduction

MA-688 is an economical real-time fluorescence quantitative PCR instrument with full open design tailored to qPCR begimers and sman laboratories based on MA-6000 seriestecmical platfonn.

Features

Excellent temperature control performance

High quality semiconductor thermoelectric module, combined with German high-end PTlOOO temperature sensor and edge thermal compensation temperature

Multi-purpose function

Peltier Base heating module with multi-point temperature control can provide gradient temperature function of optimization experiment

Extraordinary optical design

Maintance-free LED excitation light source, fluorescence signal of high temperature resistant professional fiber real-time transmission of 48-hole , high signal-to-noise ratio photodiode reading signal, ensure no edge effect

Friencly, intuitive software setup interface

Quick response parameter setting wizard, intuitive sample setting wizard, powerful experimental data analysis function

Fast lab start and report output

It does not need preheating and is easy to operate on and off, and can be used for experiments in 30s. Intelligent data analysis, report output can be completed within 10 minutes

Software Function & Data Processing

Absolute Quantification

Relative Quantification

Melting curve

Genetic mutation (screening)

Viral load analysis

SNP genotyping

Gene expression

PCR amplification efficiency

Performance Parameter

Basic Performance

Overall Dimension	466310273mm
Weight	18 Kg
Power supply	110 – 240 V, 50 – 60 Hz
Communication Interface	USB

Operating Environment Parameter

Environment Temperature	18 – 30 C
Relative Humidity	85%
Transportation and Storage Temperature	-20 – 55 C
Transportation and Storage Relative Humidity	85%

PCR System Performance

Tube Capacity	48*0.2ml
Sample Volume	20 – 120 ul
Apply Consumables	0.2ml PCR tube, 8*0,2ml PCR Tube
Temperature Control Range	4 – 99 C
Tempeature Accuracy	0,1 C
Temperature Uniformity	+0,25 C
Heating rate	4.5 C/s
Cooling Rate	3,0 C/s
Heating/Cooling	Semiconductor Mode
Hot Cover	Electrical Cover

Fluorescence Detection System Performance

Light Source	High Brighteness Light
Detector	PD
Excitation and detection of Propagation Media	High temperature resistant professional fiber
Linear range of samples	10 – 10 copies
Sample linearity	0,99
Sample testing repeatability	1.00%
Excitation wavelength	The first channel: 4 7011111± I 0mn
	The second channel: 525 nm±!0nm
	The third channel: 570mn±l0mn
	The fourth channel: 620mn±!0nm
Detection wavelength	The first channel: 520nm± I 0nm
	The second chrumel: 570nm±!0nm
	The third channel: 620nm±!0nm
	The fourth channel: 670nm±l0nm
