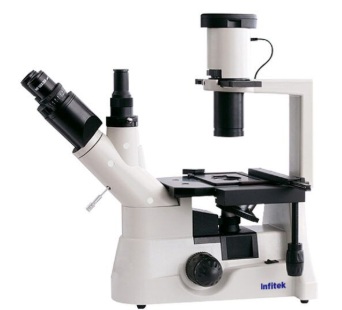

Inverted Microscope_MSC-IV403

Kepala Trinokular Miring 45°
Lensa Okuler: WF10X/ 20mm
Lensa Objektif: LWD Plan ObjectiveLWDPL4X\10X\20X\40X

Optional camera

Model	MSC-IV403
Optics	Finite Distance Optical System
Observation Tubes	Tilting binocular, interpupillary 50-75mm
Viewing Head	Seidentopf head, inclined at 45°
Optical Coating	Transmittance ≥ 95%
Eyepiece	Wide field eyepiece WF10×20mm
Objective	LWD plan objective LWDPL4X\10X\20X\40X
Nosepiece	Quadruple nosepiece
Stage	Double layers mechanical stage, stage size: 242mm× 172mm, central stage: Φ110mm, moving range: 75mm × 50mm
Condenser	N.A.0.3Abbe condenser W.D .75mm
Focusing	Coaxial coarse&fine focusing adjustment with rack and pinion mechanism fine focusing scale value 0.002mm
Illumination	Halogen bulb12V/30W,adjustable brightness
Electricity	100-240V AC,50/60Hz
Package Dimension (WDH) (mm)	770330480
Gross Weight (Kg)	13
*Optional	Photograph connecting tube, adapter with MD or PK mount, 4X photograph
